Features |
1. Correct 0°C is accurately controlled. 2. It can be operated only by turning on the switch since thermoelectric cooling type has been adopted. Complex operation and maintenance are not necessary. 3. It can be operated continuously for long periods. 4. Various kinds of thermocouples can be built-in at your request. |
Applications |
1. For cold junction of various kinds of thermocouples for precision temperature measuring and control. 2. For verification and correction of temperature sensor of various kinds of thermocouples, thermistors, and platinum resistors, and temperature measuring devices and temperature controllers. 3. For the multi-point precision temperature control system such as the temperature data collecting system. |
![]() |
![]() |

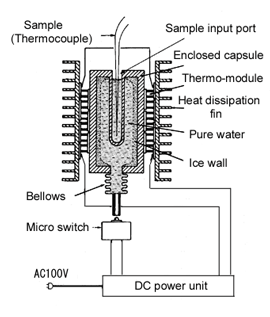

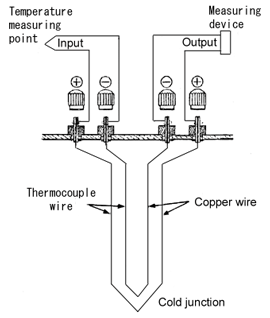

Principle Block Diagram | Configuration of one pair built-in thermocouple |
◇Performance
Model |

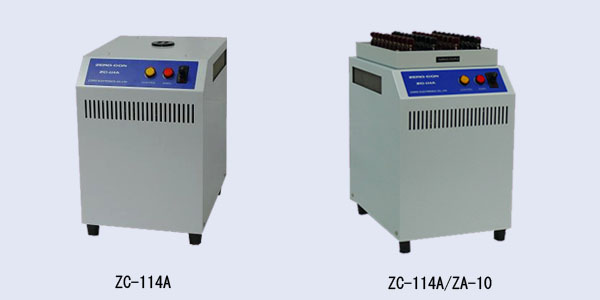

ZC-114A |
Setting standard temperature | 0°C |
Standard temperature stability accuracy Ambient temperature 5°C Ambient temperature 10°C Ambient temperature 15°C Ambient temperature 20°C Ambient temperature 25°C Ambient temperature 30°C |
0°C - 0.005°C 0°C - 0.010°C 0°C - 0.015°C 0°C - 0.020°C 0°C - 0.025°C 0°C - 0.030°C |
Temperature control accuracy | ±0.001°C - ±0.005°C |
Allowable ambient temperature |
2°C - 30°C |
Starting preparation waiting time Ambient temperature 20°C Ambient temperature 25°C Ambient temperature 30°C |
Approx. 25 minutes Approx. 35 minutes Approx. 45 minutes |
◇Specifications
Model |
ZC-114A |
ZC-114A/ZA-10/ZA-20 |
Sample input port (inner pipe) | Port diameter: 6.7mm Overall depth: 140mm Dip wire depth: 120mm |
- |
Thermoelectric element | Peltier-Module |
|
Heat dissipation method | Forced air cooling |
|
Power requirement | 100VAC ±10V 50/60Hz MAX 100VA |
|
Outer dimensions | W200 X D270 X H298mm ±1mm |
W200 X D270 X H340mm ±1mm |
Weight | Approx. 12Kg |
Approx. 13Kg |
◇Thermocouple Built-in Type Specifications
Model |
ZC-114A/ZA-10 |
ZC-114A/ZA-20 |
|
Built-in thermocouple pair number | 10 |
20 |
|
Built-in thermocouple type | R,J,E,K,T at your request |
||
Remarks | High accuracy thermocouple wire and dedicated terminal are used. Combination of several kinds is also possible at your request. In each case, accuracy is within 0.5 ℃. |
The above-mentioned specification might change without a previous notice.
Sorry, we will not do the export sales of this product.
